Project name: Platina 220
Incorporation and construction: Porte Engenharia e Urbanismo
Architectural design: Königsberger Vannucchi
Structure Project: Edatec Engenharia S/C LTDA
Landscaping Project: Takeda Arquitetura e Paisagismo
Interior Design: Triptyque Architecture
Project team: Jorge Königsberger, Gianfranco Vannucchi, Francesc De Fuentes, Liliana Sá, Alexandre Daud, Carla Estrella, Sandra Dellarole, Rafael Cavalheiro, Thalita Teixeira Ambrogi, Vinicius Campos, Julio Sartori, Erika Chioato, Paulo Massao, Thais Bombonati, Felipe Rossi, Sabrina Airon, Eduardo Tong, Engelbert Bertoni
Photos: Pedro Vannucchi

PLATINA 220, הוא הבניין הגבוה ביותר בסאו פולו, ברזיל. זהו בניין עירוב שימושים ,אשר נחנך באזור המזרחי. חברת הארכיטקטורה KÖNIGSBERGER VANNUCCHI עיצבה את גורד השחקים. בניין זה תוכנן עבור Porte Engenharia e Urbanismo ומשתמש בכל אפשרויות הבנייה הניתנות בתוכנית האב החדשה של סאו פאולו לשנת 2014.

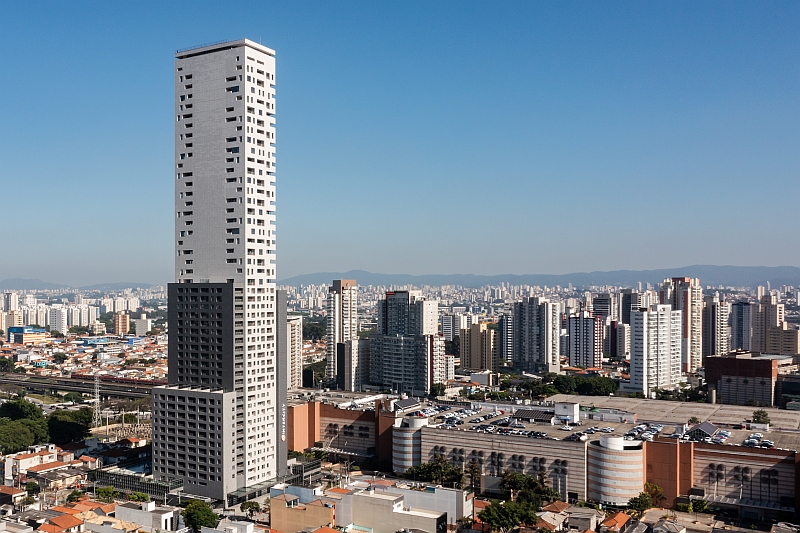

After eight years of intense design and construction, it is complete. Königsberger Vannucchi Arquitetos Associados has created the architectural project. The development belongs to Eixo Platina, a broad urbanization proposal Porte Engenharia e Urbanismo has been implementing in the area. In a single tower 564 ft [172 m] high and 46 floors, opposite Shopping Tatuapé, Platina 220 provides a variety of uses: shops [on the ground floor], hotel and residential units [in the lowest three-set part of the building], commercial areas [in the middle of the building] and corporate slabs [at the top].
By unifying all these uses, Platina 220 aims to attract more companies to the area. It also caters to other benefits, such as reducing East Zone residents' commute to other parts of the city. 'Due to the complexity and diversity of the program, we compare its completion to assembling a Tangram,' says Jorge Königsberger, one of the project's authors and KV founding partner.


Photo Credit: Pedro Vannucchi


Photo Credit: Pedro Vannucchi


Photo Credit: Pedro Vannucchi


Photo Credit: Pedro Vannucchi

Photo Credit: Pedro Vannucchi

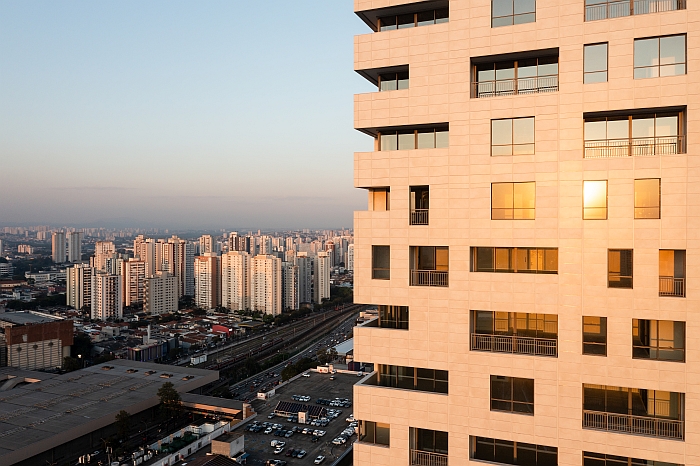

The result is a building with striking volumetry. One of the main highlights is the elements on the ventilated façade. To make construction at hhh feasible and, at the same time, ensure internal thermal comfort, durability and longevity for the enveloping material, porcelain tiles have been used in the construction system.

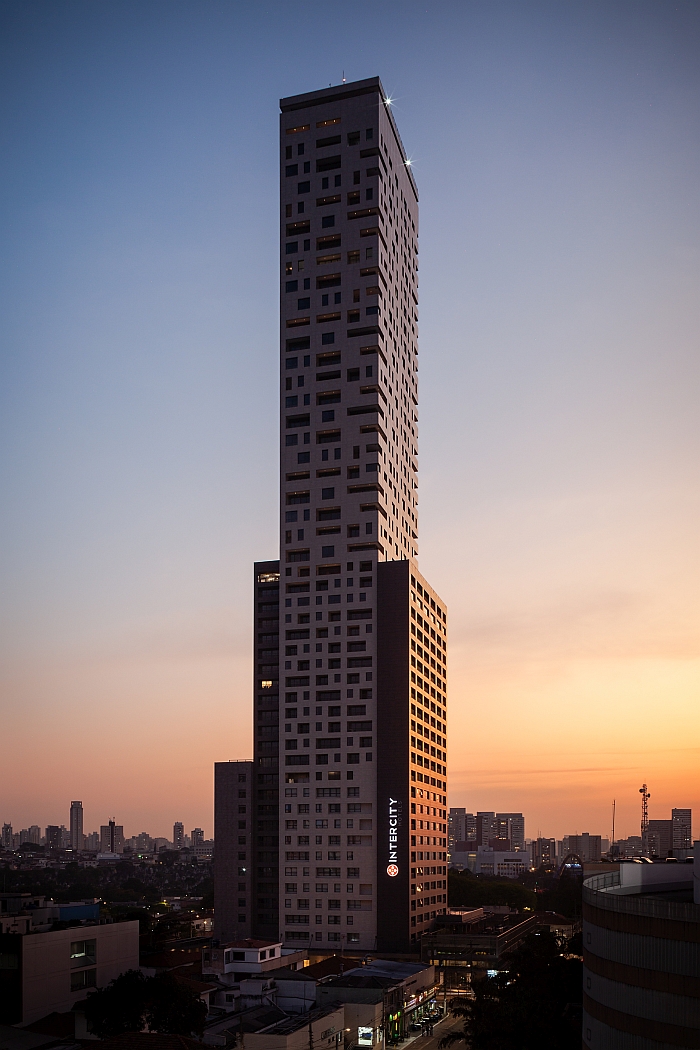

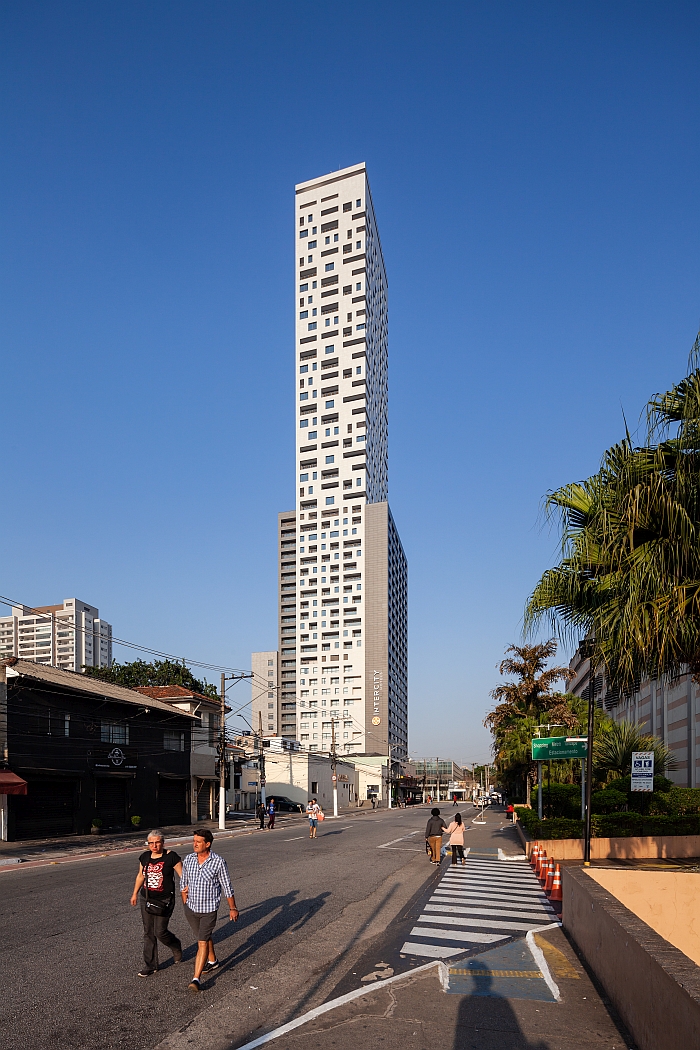

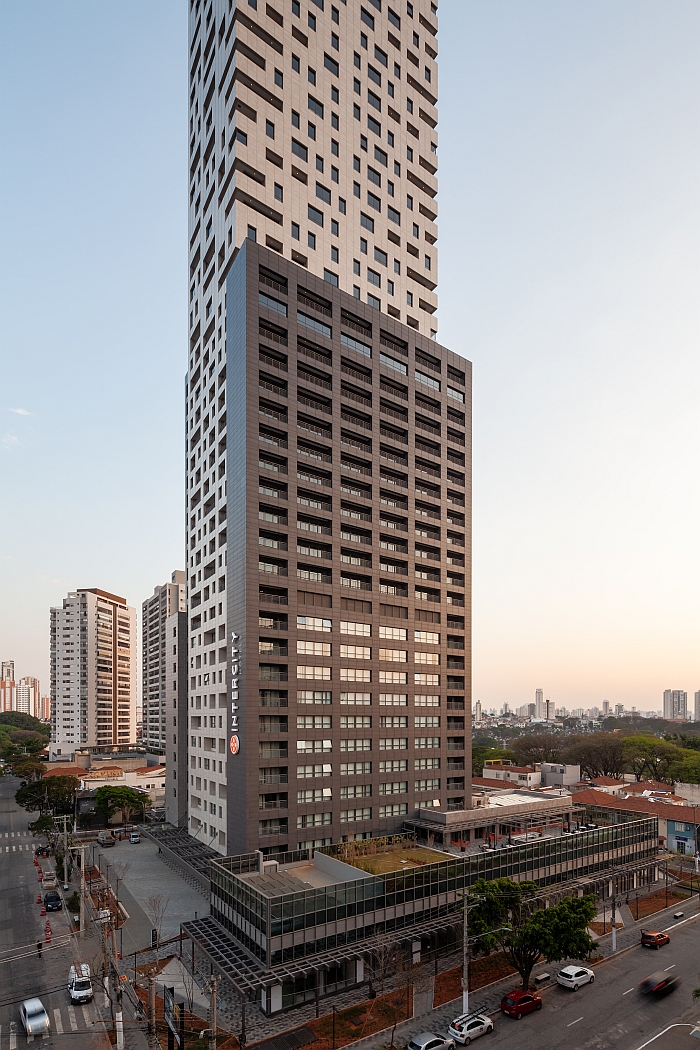

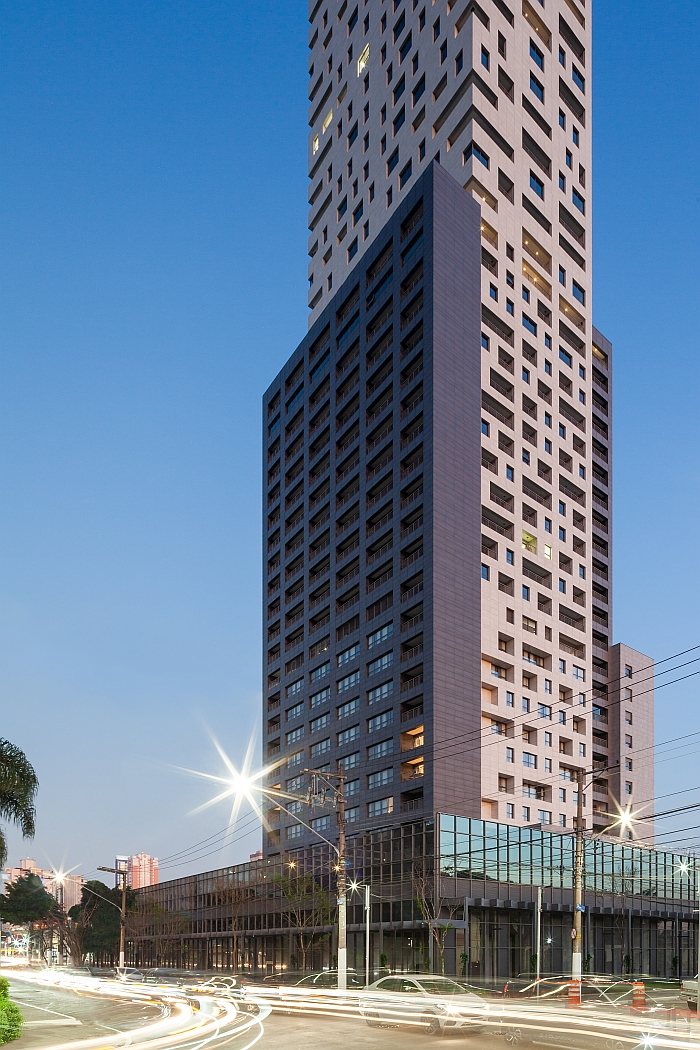

In light tones, the central prismatic block with terraces and window frames arranged in different positions creates a stimulating effect of contrasting lights and shadows. Thus, the building looks like a monolith carved into the landscape. In darker tones, the side blocks preserve the main block's verticality. They also stand out as buttresses by providing the building with a sense of support.

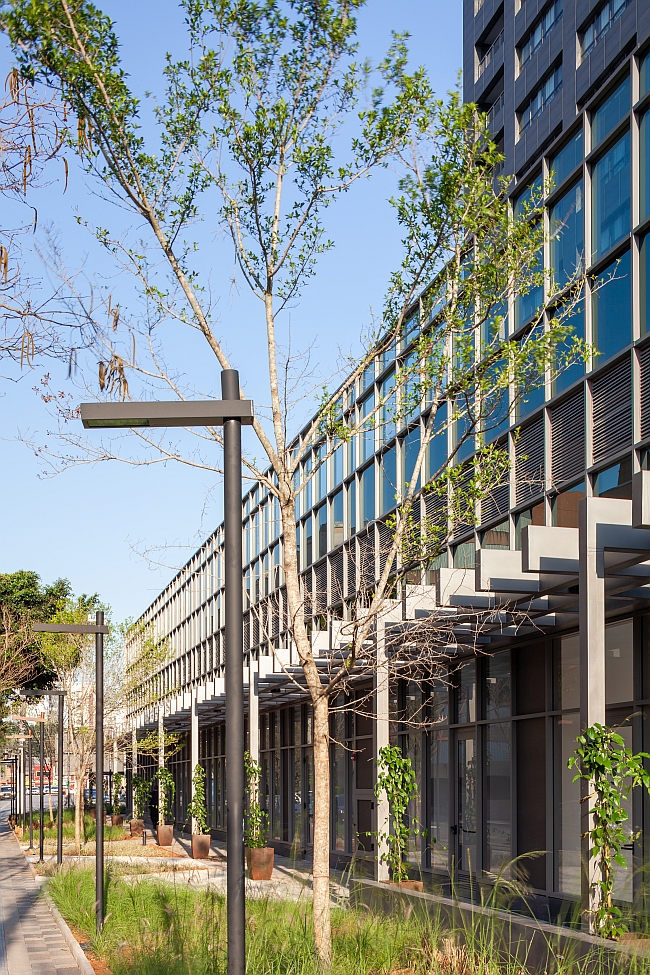

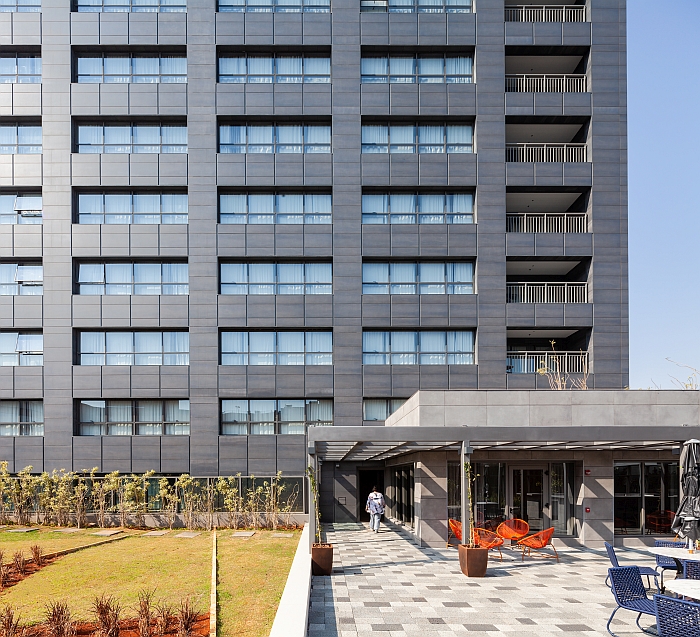

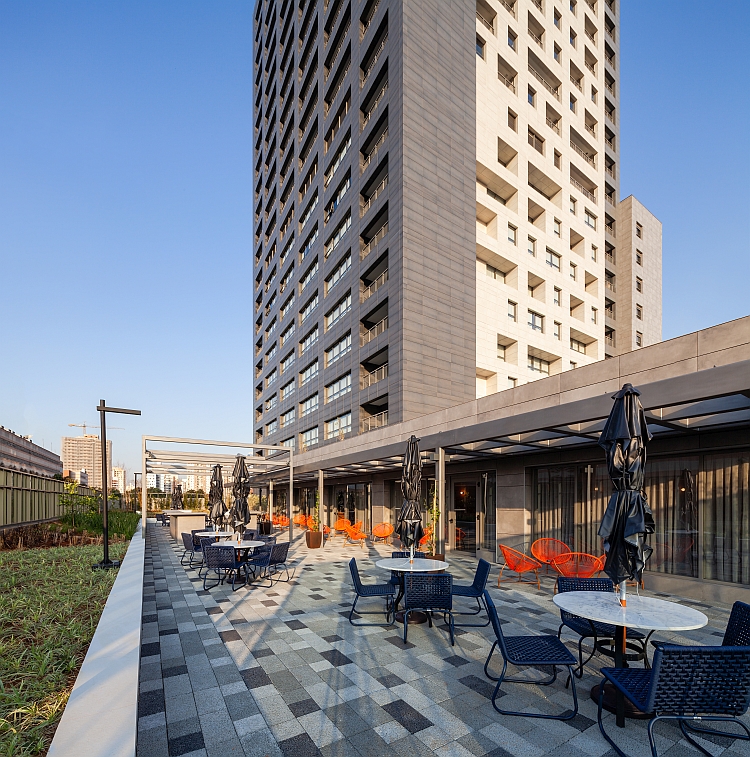

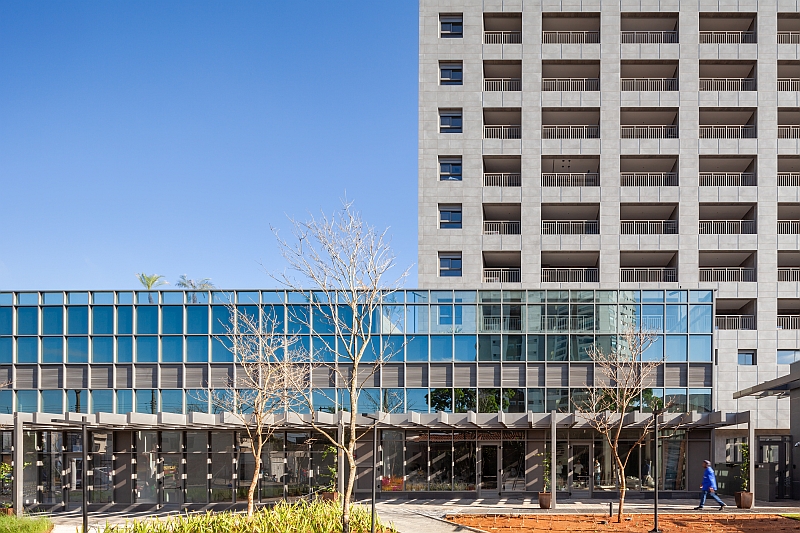

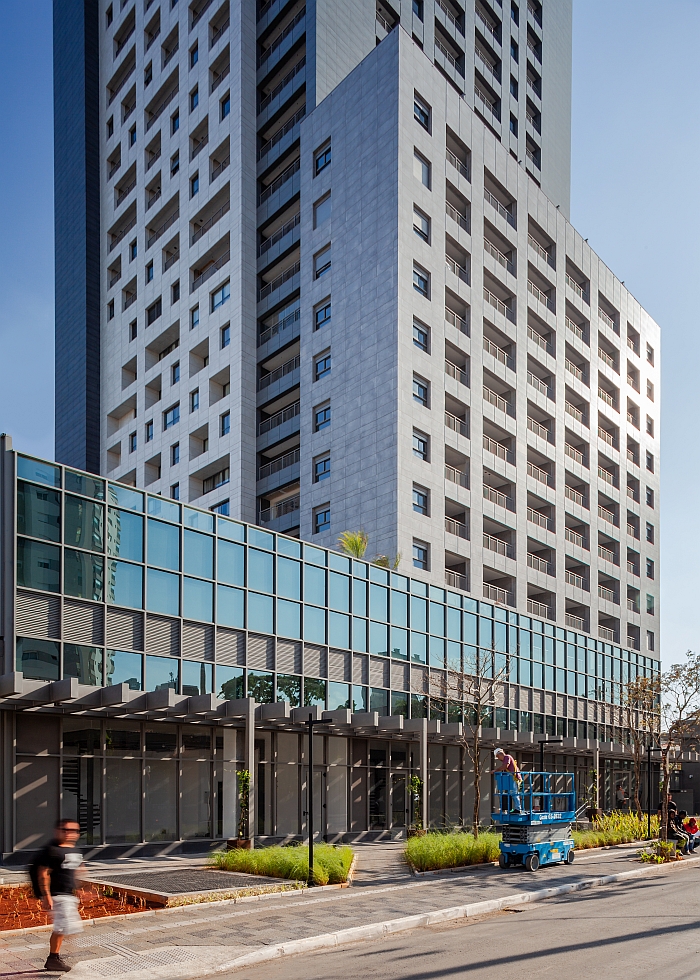

Rua Bom Sucesso is the entry access to the building. The main prism 'touches' the ground floor on that street. In the block’s surrounding area, there are spaces for stores to maximize the project and deliver two possible external areas: in the public area, generous and tree-lined perimeter sidewalks; in the private area, above the shops, leisure space for building users.


Photo Credit: Pedro Vannucchi


Photo Credit: Pedro Vannucchi


Photo Credit: Pedro Vannucchi


Photo Credit: Pedro Vannucchi

To achieve and deliver this constructive potential to the city, we have used all the instruments and benefits provided for by the 2014 São Paulo New Master Plan. We have also made sure the building positively impacts surrounding areas. It delivers mixed-use, active facades, and harmony with the street, among other elements. During the project phase, Platina 220 won the international sustainability seal AQUA-HQE issued by Vanzolini Foundation.
Königsberger Vannucchi Arquitetos Associados is celebrating its 50th anniversary this year. We have always played the leading role in the main discussions of our sector. Also, we have designed iconic projects in São Paulo, such as Terra Brasilis, 1986; Sesc Avenida Paulista, inaugurated in 2018; Brascan, the first mixed-use building in São Paulo, and Top Towers, an iconic building in Paraíso, overlooking Avenida 23 de Maio.
Along with Porte in Eixo Platina, other developments designed by Königsberger are under construction. They should be inaugurated in the coming years. One of such projects, Almagah 227, won the 2019-2020 Americas Property Awards.


Photo Credit: Pedro Vannucchi


Photo Credit: Pedro Vannucchi


Photo Credit: Pedro Vannucchi

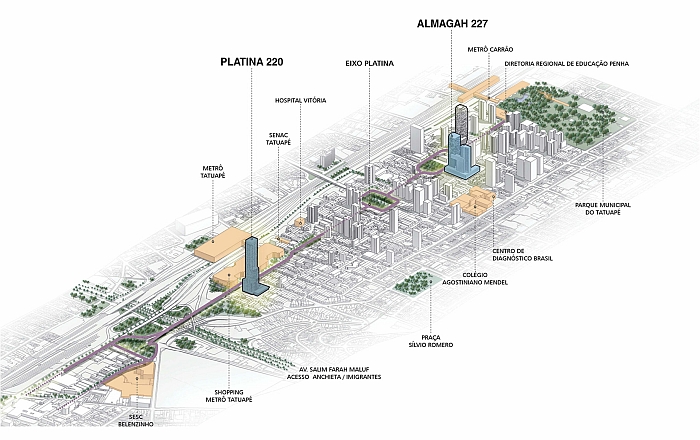

Eixo-Platina-scaled

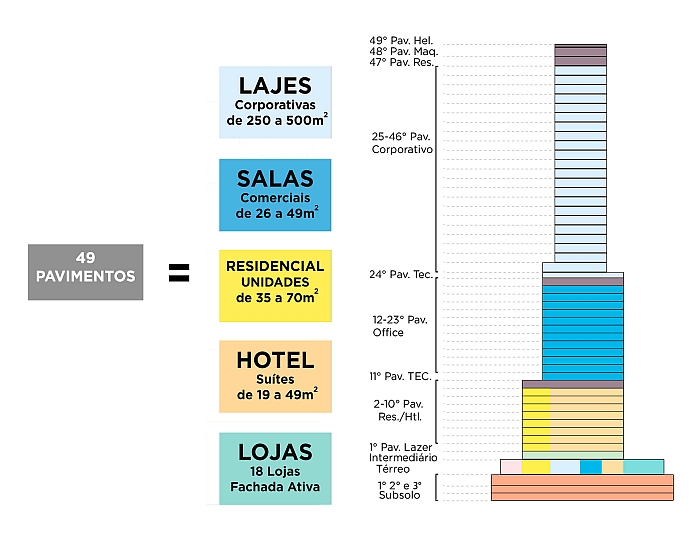

Diagrama-de-usos-corte-esquemático

Data and figures on Platinum 220:
• 564 ft [172 m] high
• 48 floors
• Built area: 637,578.7 square feet [59,233 square meters]
• Plot area: 68,845.97 square feet [6,396 square meters]
• 19 stores on the ground floor
• 190 hotel rooms from the 2nd to 10th floor
• 80 apartments from the 2nd to 10th floor
• Commercial areas from the 12th to 24th floor
• 50 corporate rooms from the 25th to 46th floor
• Foundation: 338 continuous helix type
For the construction work:
• Tower: 32,300 thousand cubic meters of concrete and 3.9 million tons of steel
• Central block: 112 units of concrete mixers, 873 cubic meters of concrete, and 600 tons of steel
