תכנון מכללת ספורט ואומנויות בברזיל
|| פרויקטים
Project: São Luís College Sports and Cultural Complex
Architecture: Studio Barbour
Management / Coordination: IPE - Implantação Planejamento e Engenharia
Place: Colégio São Luís, Rua Haddock Lobo 400, São Paulo
Year: 2016
Area: 9.062m²
Photo Credit: Nelson Kon
קולג'יו סאו לואיס הוא אחד מבתי הספר הוותיקים והמסורתיים ביותר בסאו פאולו והיה לו מחסור חשוב במגרשי ספורט ומרחב מתאים לקונצרטים, הרצאות ואירועי תרבות אחרים הקשורים לסדר היום המוסדי שלו. כיוון שהגימנסיה הקיימת - סככה משנות החמישים - הייתה חלק מהמתחם החינוכי, לא היה פוטנציאל קונסטרוקטיבי זמין בסככה של בית הספר ועל כן הפתרון צריך להינתן ללא הגדלת השטח הבנוי, וההתערבות צריכה להתרחש מבלי להשפיע על פעילות בית הספר, כמו גם על החנויות המסחריות שכבשו את החזיתות לרחובות הסמוך לובו ולואיס קואלו, בג'רדינס.
With architecture by Studio Barbour, the conception traced three important goals from the beginning: to offer the greatest possible flexibility of uses for the space, to transform the sports complex into a social area reintegrated into the school, and to propose a new typology of school gymnasium, eliminating the typical bunker characterization and visually reconnecting the building and its users with the city.
According to Alberto Barbour, architect and founder of Studio Barbour, the technological challenge of demolishing and rebuilding the Gymnasium was very big, and it was only possible due to a previous planning - actually a Master Plan that involved literally the whole school, in its 90 thousand m².
Photo Credit: Nelson Kon
Photo Credit: Nelson Kon
Photo Credit: Nelson Kon
'The implementation of this Master Plan lasted from 2005 until the completion of the gymnasium, and in this interval we managed to make the school go from 1500 to 3000 students in capacity, without adding one square meter to the whole,' the architect reinforces.

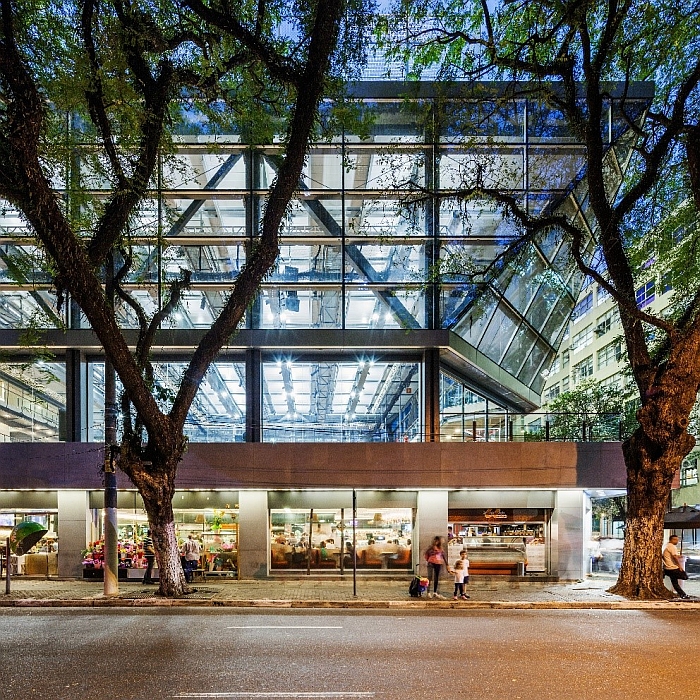

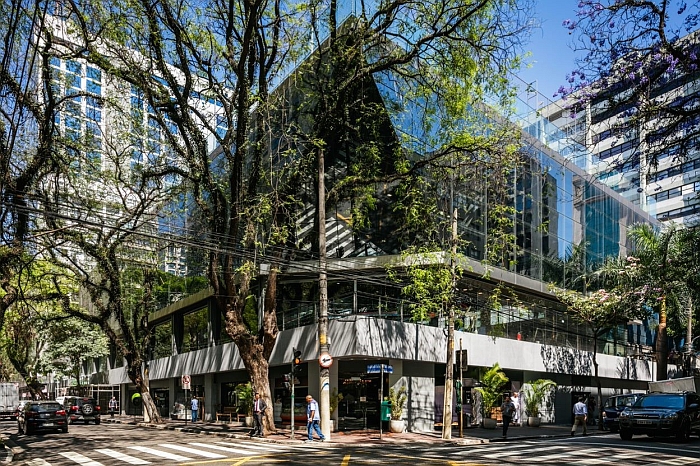

The new typology did not encounter many direct influences, since sports complexes and concert venues hardly ever have large transparent façades, but from the beginning it was known that given the constructive and operational limitations, the new construction would perfectly welcome the light and elegant design of a brazen structure, within a modernist-based repertoire that is the basis of Studio Barbour's thinking.
The main difficulties were related to its execution, since the work could not interrupt the activities of the school, as well as the stores on the first floor just below the gym, and would take place in an area of restricted truck circulation, and with a pedestrian flow on the sidewalk around 3 thousand people per day.
Photo Credit: Nelson Kon
Photo Credit: Nelson Kon
Photo Credit: Nelson Kon
The solution was to design basically with construction elements that could be produced outside the building site, so that it would basically be a faster and quieter assembly center.
From the technology point of view, the Sports and Cultural Complex of Colégio São Luís has several highlights, such as the retractable bleachers that allow flexibility in the use of the courts, doubling the effective area for training; the acoustic and thermal planning that enabled the comfortable use of space with ventilation and natural lighting, without disturbing the neighborhood or the school itself, and a 60 thousand liter rainwater reuse system, reusable in the gym itself.

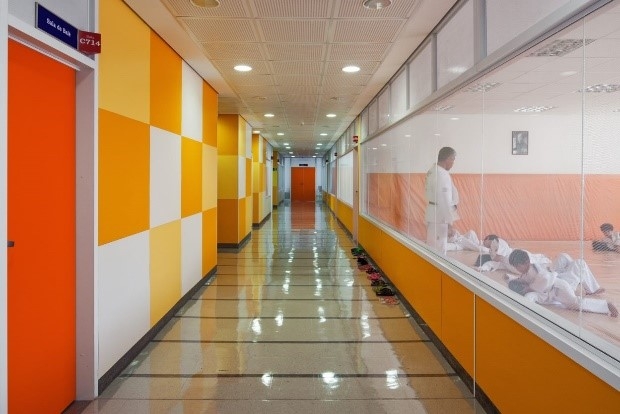

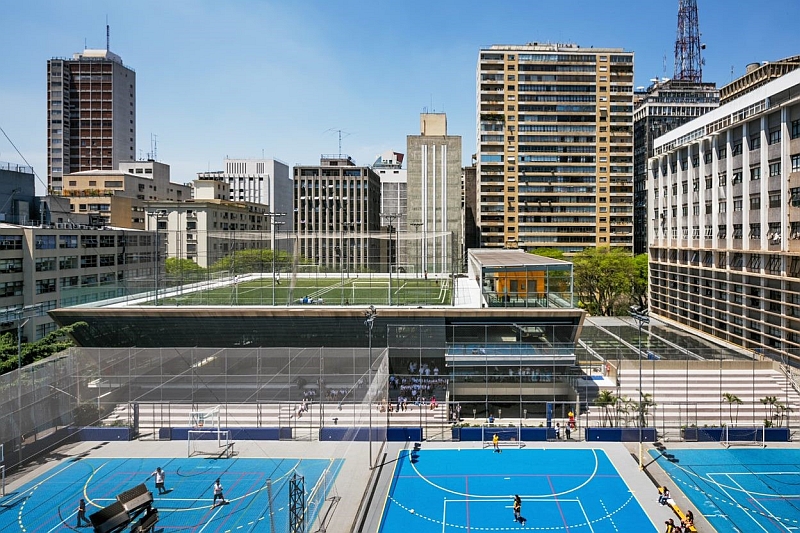

Architecturally, it is a very original typology. The purpose of bringing the trees [centennial tipuanas] and their shadows as an important part of the project creates sports areas that refer to open space, to the outdoors. This visual continuity establishes a new relationship between the school and the city, where their respective protagonists see and recognize each other, preserving the students' privacy, but instigating them to know the movement of the streets in which they live surrounded for most of their lives. The new layout transformed what was a one-court building into a sports complex with two indoor courts, a soccer field, and a hall for physical education and dance classes.

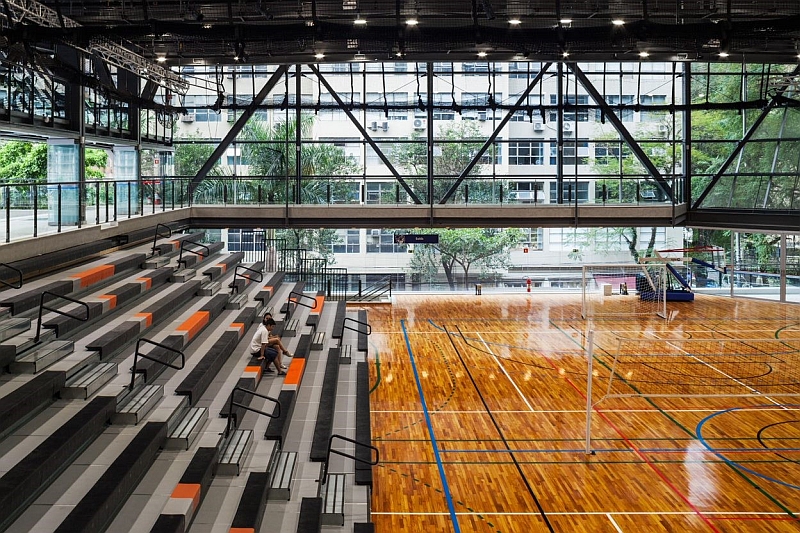

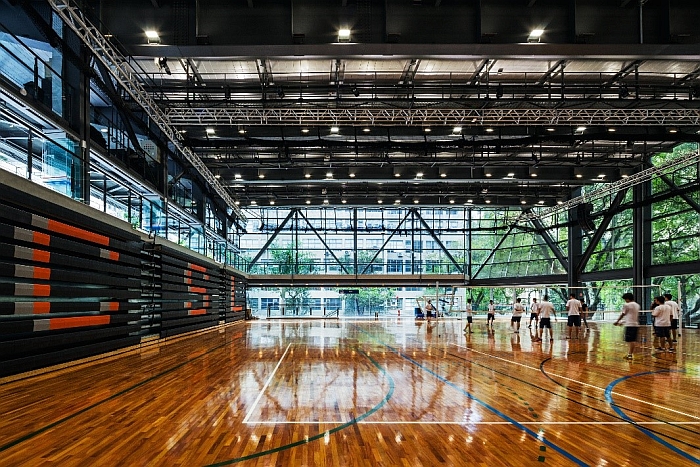

This was made possible by adopting a different layout, concentrating all the bleachers on one side of the court, so that the public could also enjoy the trees and the street in the background. Complementing the solution, an automated retractable grandstand created the necessary condition for the main court to convert into two courts for regular practice days.
From the technology point of view, the Sports and Cultural Complex of Colégio São Luís has several highlights, such as the retractable bleachers that allow flexibility in the use of the courts, doubling the effective area for training; the acoustic and thermal planning that enabled the comfortable use of space with ventilation and natural lighting, without disturbing the neighborhood or the school itself, and a 60 thousand liter rainwater reuse system, reusable in the gym itself.
Architecturally, it is a very original typology. The purpose of bringing the trees [centennial tipuanas] and their shadows as an important part of the project creates sports areas that refer to open space, to the outdoors. This visual continuity establishes a new relationship between the school and the city, where their respective protagonists see and recognize each other, preserving the students' privacy, but instigating them to know the movement of the streets in which they live surrounded for most of their lives. The new layout transformed what was a one-court building into a sports complex with two indoor courts, a soccer field, and a hall for physical education and dance classes.
This was made possible by adopting a different layout, concentrating all the bleachers on one side of the court, so that the public could also enjoy the trees and the street in the background. Complementing the solution, an automated retractable grandstand created the necessary condition for the main court to convert into two courts for regular practice days.

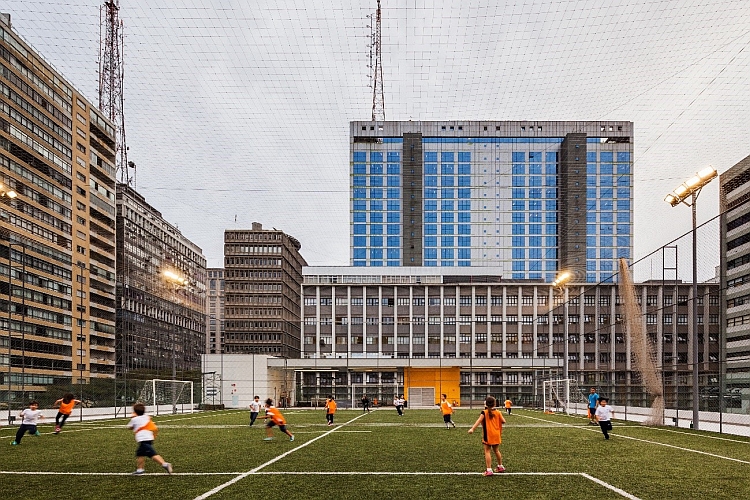

The old roof of the gym was transformed into a waterproofed slab with a synthetic grass soccer field - so it could be used every day - and this entire area received a rainwater collection system that can absorb up to 60,000 liters of water to be reused in the sanitary systems and maintenance of the gym itself.
Still in the field of sustainability, we highlight the special solutions for natural ventilation and lighting, generating significant savings in terms of air conditioning and lighting of the sports environments. The gymnasium's artificial lighting follows and complements the natural lighting, generating savings and lighting quality to the complex.
Photo Credit: Nelson Kon
Photo Credit: Nelson Kon
The project includes a complete infrastructure for audiovisual installations, so that the space can host concerts and cultural events. From a technical balcony, a control desk manages scenery and lighting devices that allow several different configurations - besides being able to transform the entire main court into a scenic black box.
When all the previous phases were completed - which included the expansion of the school restaurant, accommodation of extra courses, among other solutions - it was possible to embark on this project and work knowing that the impact on the school and the neighborhood would be manageable, and the result would make the building a reference.
Photo Credit: Nelson Kon
'
Photo Credit: Nelson Kon
Still in the field of sustainability, we highlight the special solutions for natural ventilation and lighting, generating significant savings in terms of air conditioning and lighting of the sports environments. The gymnasium's artificial lighting follows and complements the natural lighting, generating savings and lighting quality to the complex.
Photo Credit: Nelson Kon
Photo Credit: Nelson Kon
The project includes a complete infrastructure for audiovisual installations, so that the space can host concerts and cultural events. From a technical balcony, a control desk manages scenery and lighting devices that allow several different configurations - besides being able to transform the entire main court into a scenic black box.
When all the previous phases were completed - which included the expansion of the school restaurant, accommodation of extra courses, among other solutions - it was possible to embark on this project and work knowing that the impact on the school and the neighborhood would be manageable, and the result would make the building a reference.
Photo Credit: Nelson Kon
'
Photo Credit: Nelson Kon
Photo Credit: Nelson Kon
